AC-FKT4

This kit comes with the WIFI Controller 69 PRO

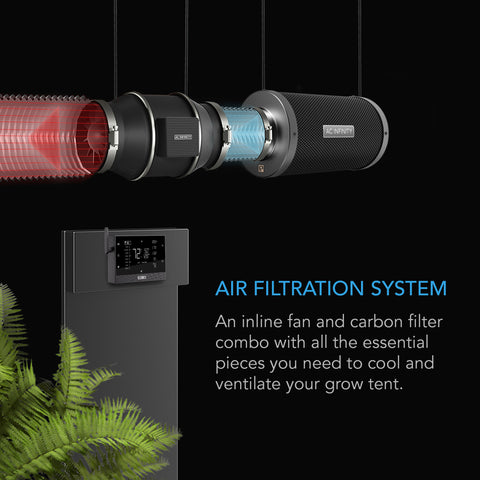

An air filtration kit with everything you need to cool, ventilate, and control odors in your grow space.
Features the CLOUDLINE inline fan with a PWM-controlled EC motor for quiet and energy efficient ventilation.
Smart controller sets climate triggers, schedules, and grow cycles. Access graphs and alerts via Bluetooth app.

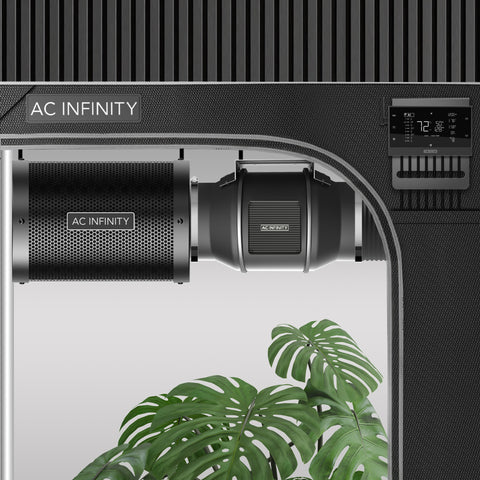

Australian carbon filter with flexible ducting traps odors while routing stale air away from your grow tent.
Kit Duct Size: 4” | Airflow: 205 CFM | Noise 29 dBA | Carbon Thickness: 38 mm | Ducting Length: 25 ft.
PRODUCT DESCRIPTION

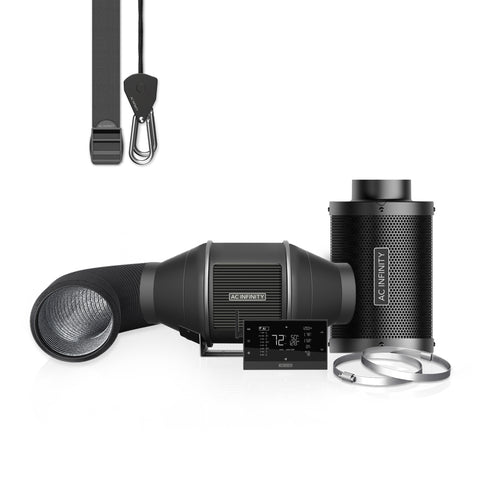

A grow tent air filtration system with all the necessary inline components you need to ventilate your grow space. By assembling these essential pieces, this package will help you quickly get your grow build started and eliminate the guesswork of purchasing them individually. This inline fan kit features the CLOUDLINE Series fan that is capable of delivering powerful yet quieter performance. Paired with a carbon filter using Australian virgin charcoal to block odors from seeping out of your grow tent. These two pieces are connected by a set of flexible ducting with four layers of protection to properly direct airflow away. Accessories include duct clamps, prefilter cloth, rope clip hangers, and hanging straps to complete the installation. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

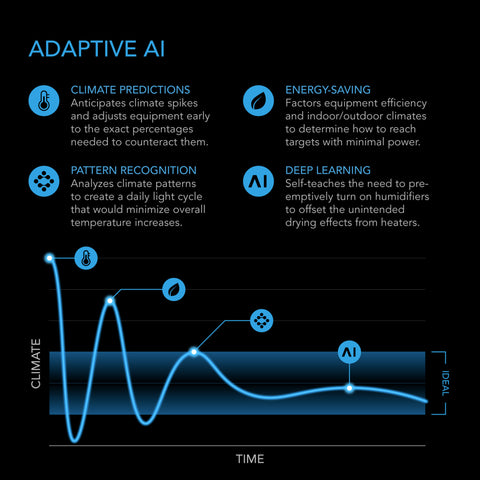

INTELLIGENT PROGRAMMING
CONTROLLER 69 PRO distributes smart programming to the quiet inline fan to keep temperature and humidity in check and produce the optimal environment. Set dynamic programs that go beyond on/off triggering and adjust fan speed in response to changing indoor climate. Minimum baseline levels keep the inline fan running at low speeds for consistent airflow while timer, cycle, and schedule modes add custom on-demand activation. Equipped with four ports to expand your airflow or add lighting for growing applications. Securely connect with the AC Infinity app via Bluetooth to remotely access your devices, unlock advance programs, set alarms, notifications, view historical charts, and export CSV data.

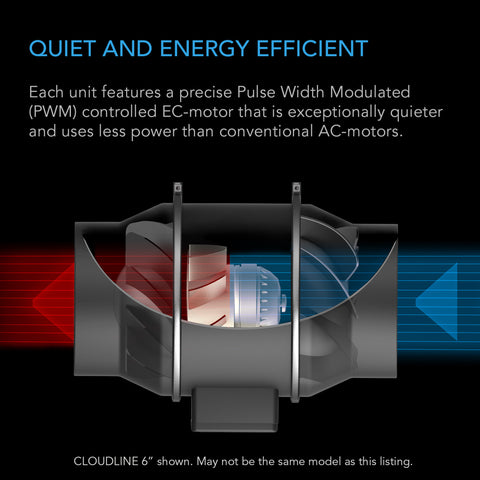

QUIET AND ENERGY-EFFICIENT DESIGN
The included CLOUDLINE Series inline fan features a PWM-controlled EC motor, enabling smooth operation at low RPM speeds with no additional heat or noise. It achieves high-performance airflow fit for grow tents thanks to its mixed-flow design and its use of stator blades and hydrodynamic wind circles. Dual ball bearings give this inline fan a 67,000-hour lifespan which is backed by its IP-44 rating, resisting dust and splashing liquids.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	Air Filtration Kit PRO 4"
Product Model	AC-FKT4
UPC Code	819137022911
Product Manual
Product Manual	PDF

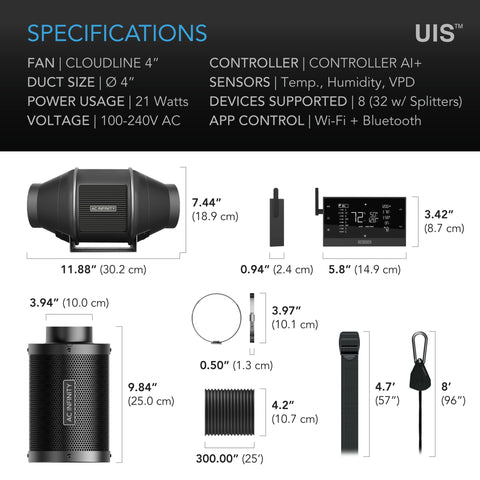

Product and Mounting Dimensions - Fan Unit
Duct Size	4"
Total Dimensions	7.48 x 11.89 x 6.93 in. (19.0 x 30.2 x 17.6 cm)
Mounting Hole-To-Hole Distance	3.15 x 2.36 in. (8.0 x 6.0 cm)
Screw Hole Size	Ø 0.197 in. (Ø 0.5 cm)
Cord Length to Controller	72 in. (6 feet)
Cord Length to Plug	72 in. (6 feet)
Product and Mounting Dimensions - Controller
Total Dimensions	5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
Product Performance and Technical Specs - Fan Unit
Total Airflow	205 CFM
Total Noise	29 dBA
Max Speed	2800 RPM
Static Pressure	324 Pa
Voltage	100-240V AC
Frequency	50/60Hz
Max Power Draw	25 W
Average Power Usage	18 W
Current	0.55 A
Power Connector Type	UK plug
Operating Humidity	35 to 85% RH
Operating Temperature	0 to 140°F
Ingress Protection	IP 44
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
Fan Quality Approvals	CE, RoHS
CE Certification (Fan Only)	PDF
ETL Cert. (Fan Only)	PDF
RoHS Cert. (Fan Only)	PDF
SAA Cert. (Fan Only)	PDF
Product and Mounting Dimensions - Carbon Filter
Duct Opening Size	4"
Total Dimensions	13.35 x 6.97 in. (33.3 x 17.7 cm)
Flange Length	1.46 in. (3.7 cm)
Product Performance and Technical Specs - Carbon Filter
Flange Material	Aluminum
Flange Design	Reversible
Mesh Material	Galvanized Steel
Carbon Type	Australian Virgin RC412
Carbon Grade	1200+ IAV
Carbon Thickness	38mm
Maximum Airflow	210 CFM
Product Dimensions - Ducting
Ducting Size	4 in. (10.2 cm)
Length	300 in. (25 ft)
Product Performance and Technical Specs - Ducting
Outer Layer	PVC Thermoplastic
Inner Material	Aluminum Foil
Internal Structure	Spiral Steel-Wire
